Pair distribution functions

Basic usage

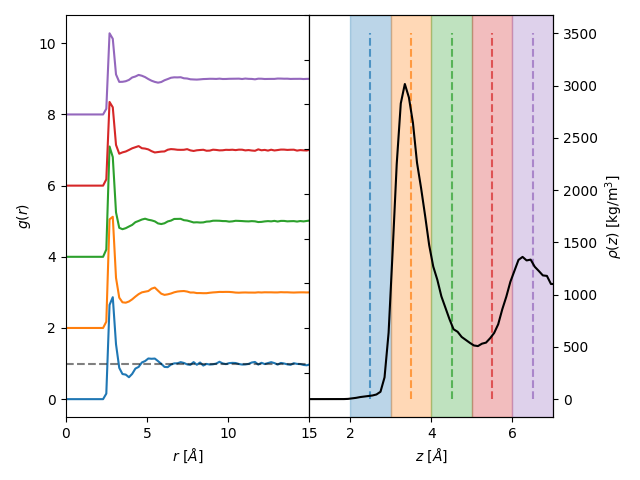

In the following example, we will show how to calculate the two-dimensional planar pair distribution functions.

In the following, we will give an example of a trajectory of water confined by graphene sheets simulated via GROMACS. We assume that the GROMACS topology is given by graphene_water.tpr and the trajectory is given by graphene_water.xtc. Both can be downloaded under topology and trajectory, respectively.

From these files you can create a MDAnalysis universe object.

We begin by importing the necessary modules.

import matplotlib.pyplot as plt
import MDAnalysis as mda
import numpy as np

import maicos

Next, we proceed with the creation of a MDAnalysis universe object, from which we further select the water molecules using the resname selector.

u = mda.Universe("./graphene_water.tpr", "graphene_water.xtc")

This universe object can then be passed to maicos.modules.pdfplanar.PDFPlanar analysis object. It expects you to pass the atom groups you want to perform the analysis for. In our example, we have graphene walls and SPC/E water confined between them, where we are interested in the dielectric behavior of the fluid. Thus, we will first select the water as an MDAnalysis atom group using MDAnalysis.core.groups.AtomGroup.select_atoms(). In this case we select the water by filtering for the residue named SOL.

water = u.select_atoms("resname SOL")

ana_obj = maicos.PDFPlanar(
    water,
    water,
    dzheight=0.25,
    dim=2,
    pdf_bin_width=0.2,
    refgroup=water,
    zmin=-5.0,
    zmax=0,
)

Next, we can run the analysis over the trajectory. To this end we call the member function run. We may set the verbose keyword to True to get additional information such a a progress bar.

Here you also have the chance to set start and stop keywords to specify which frames the analysis should start at and where to end. One can also specify a step keyword to only analyze every step frames.

ana_obj.run(verbose=True, step=1)

  0%|          | 0/2001 [00:00<?, ?it/s]
  0%|          | 4/2001 [00:00<00:59, 33.31it/s]
  0%|          | 8/2001 [00:00<00:59, 33.29it/s]
  1%|          | 12/2001 [00:00<00:59, 33.31it/s]
  1%|          | 16/2001 [00:00<00:59, 33.22it/s]
  1%|          | 20/2001 [00:00<00:59, 33.23it/s]
  1%|          | 24/2001 [00:00<00:59, 33.18it/s]
  1%|▏         | 28/2001 [00:00<00:59, 33.20it/s]
  2%|▏         | 32/2001 [00:00<00:59, 33.14it/s]
  2%|▏         | 36/2001 [00:01<00:59, 33.04it/s]
  2%|▏         | 40/2001 [00:01<00:59, 33.00it/s]
  2%|▏         | 44/2001 [00:01<00:59, 32.90it/s]
  2%|▏         | 48/2001 [00:01<00:59, 32.94it/s]
  3%|▎         | 52/2001 [00:01<00:59, 32.94it/s]
  3%|▎         | 56/2001 [00:01<00:59, 32.92it/s]
  3%|▎         | 60/2001 [00:01<00:58, 33.03it/s]
  3%|▎         | 64/2001 [00:01<00:58, 33.09it/s]
  3%|▎         | 68/2001 [00:02<00:58, 33.03it/s]
  4%|▎         | 72/2001 [00:02<00:58, 33.11it/s]
  4%|▍         | 76/2001 [00:02<00:58, 33.10it/s]
  4%|▍         | 80/2001 [00:02<00:58, 33.09it/s]
  4%|▍         | 84/2001 [00:02<01:02, 30.77it/s]
  4%|▍         | 88/2001 [00:02<01:00, 31.45it/s]
  5%|▍         | 92/2001 [00:02<01:00, 31.77it/s]
  5%|▍         | 96/2001 [00:02<00:59, 32.02it/s]
  5%|▍         | 100/2001 [00:03<00:58, 32.43it/s]
  5%|▌         | 104/2001 [00:03<00:58, 32.68it/s]
  5%|▌         | 108/2001 [00:03<00:57, 32.82it/s]
  6%|▌         | 112/2001 [00:03<00:57, 33.01it/s]
  6%|▌         | 116/2001 [00:03<00:57, 33.07it/s]
  6%|▌         | 120/2001 [00:03<00:56, 33.11it/s]
  6%|▌         | 124/2001 [00:03<00:56, 33.05it/s]
  6%|▋         | 128/2001 [00:03<00:56, 33.10it/s]
  7%|▋         | 132/2001 [00:04<00:56, 33.09it/s]
  7%|▋         | 136/2001 [00:04<00:56, 33.18it/s]
  7%|▋         | 140/2001 [00:04<00:56, 33.19it/s]
  7%|▋         | 144/2001 [00:04<00:55, 33.34it/s]
  7%|▋         | 148/2001 [00:04<00:55, 33.11it/s]
  8%|▊         | 152/2001 [00:04<00:55, 33.15it/s]
  8%|▊         | 156/2001 [00:04<00:55, 33.23it/s]
  8%|▊         | 160/2001 [00:04<00:55, 33.31it/s]
  8%|▊         | 164/2001 [00:04<00:55, 33.39it/s]
  8%|▊         | 168/2001 [00:05<00:54, 33.52it/s]
  9%|▊         | 172/2001 [00:05<00:54, 33.48it/s]
  9%|▉         | 176/2001 [00:05<00:54, 33.43it/s]
  9%|▉         | 180/2001 [00:05<00:54, 33.12it/s]
  9%|▉         | 184/2001 [00:05<00:55, 32.64it/s]
  9%|▉         | 188/2001 [00:05<00:54, 33.02it/s]
 10%|▉         | 192/2001 [00:05<00:54, 33.21it/s]
 10%|▉         | 196/2001 [00:05<00:54, 33.30it/s]
 10%|▉         | 200/2001 [00:06<00:53, 33.39it/s]
 10%|█         | 204/2001 [00:06<00:53, 33.49it/s]
 10%|█         | 208/2001 [00:06<00:53, 33.52it/s]
 11%|█         | 212/2001 [00:06<00:53, 33.49it/s]
 11%|█         | 216/2001 [00:06<00:53, 33.38it/s]
 11%|█         | 220/2001 [00:06<00:53, 33.44it/s]
 11%|█         | 224/2001 [00:06<00:53, 33.51it/s]
 11%|█▏        | 228/2001 [00:06<00:52, 33.58it/s]
 12%|█▏        | 232/2001 [00:07<00:52, 33.51it/s]
 12%|█▏        | 236/2001 [00:07<00:52, 33.48it/s]
 12%|█▏        | 240/2001 [00:07<00:52, 33.47it/s]
 12%|█▏        | 244/2001 [00:07<00:52, 33.47it/s]
 12%|█▏        | 248/2001 [00:07<00:52, 33.43it/s]
 13%|█▎        | 252/2001 [00:07<00:52, 33.44it/s]
 13%|█▎        | 256/2001 [00:07<00:51, 33.58it/s]
 13%|█▎        | 260/2001 [00:07<00:51, 33.62it/s]
 13%|█▎        | 264/2001 [00:07<00:51, 33.55it/s]
 13%|█▎        | 268/2001 [00:08<00:51, 33.57it/s]
 14%|█▎        | 272/2001 [00:08<00:51, 33.50it/s]
 14%|█▍        | 276/2001 [00:08<00:51, 33.50it/s]
 14%|█▍        | 280/2001 [00:08<00:51, 33.49it/s]
 14%|█▍        | 284/2001 [00:08<00:51, 33.43it/s]
 14%|█▍        | 288/2001 [00:08<00:51, 33.46it/s]
 15%|█▍        | 292/2001 [00:08<00:51, 33.35it/s]
 15%|█▍        | 296/2001 [00:08<00:51, 32.97it/s]
 15%|█▍        | 300/2001 [00:09<00:51, 32.90it/s]
 15%|█▌        | 304/2001 [00:09<00:52, 32.06it/s]
 15%|█▌        | 308/2001 [00:09<00:52, 32.46it/s]
 16%|█▌        | 312/2001 [00:09<00:51, 32.75it/s]
 16%|█▌        | 316/2001 [00:09<00:51, 33.03it/s]
 16%|█▌        | 320/2001 [00:09<00:50, 33.20it/s]
 16%|█▌        | 324/2001 [00:09<00:50, 33.44it/s]
 16%|█▋        | 328/2001 [00:09<00:49, 33.60it/s]
 17%|█▋        | 332/2001 [00:10<00:49, 33.67it/s]
 17%|█▋        | 336/2001 [00:10<00:49, 33.72it/s]
 17%|█▋        | 340/2001 [00:10<00:49, 33.74it/s]
 17%|█▋        | 344/2001 [00:10<00:49, 33.70it/s]
 17%|█▋        | 348/2001 [00:10<00:49, 33.59it/s]
 18%|█▊        | 352/2001 [00:10<00:49, 33.57it/s]
 18%|█▊        | 356/2001 [00:10<00:49, 33.52it/s]
 18%|█▊        | 360/2001 [00:10<00:48, 33.60it/s]
 18%|█▊        | 364/2001 [00:10<00:48, 33.62it/s]
 18%|█▊        | 368/2001 [00:11<00:48, 33.61it/s]
 19%|█▊        | 372/2001 [00:11<00:48, 33.64it/s]
 19%|█▉        | 376/2001 [00:11<00:48, 33.52it/s]
 19%|█▉        | 380/2001 [00:11<00:48, 33.44it/s]
 19%|█▉        | 384/2001 [00:11<00:48, 33.41it/s]
 19%|█▉        | 388/2001 [00:11<00:48, 33.52it/s]
 20%|█▉        | 392/2001 [00:11<00:47, 33.66it/s]
 20%|█▉        | 396/2001 [00:11<00:47, 33.63it/s]
 20%|█▉        | 400/2001 [00:12<00:47, 33.60it/s]
 20%|██        | 404/2001 [00:12<00:47, 33.57it/s]
 20%|██        | 408/2001 [00:12<00:47, 33.49it/s]
 21%|██        | 412/2001 [00:12<00:47, 33.49it/s]
 21%|██        | 416/2001 [00:12<00:47, 33.40it/s]
 21%|██        | 420/2001 [00:12<00:47, 33.35it/s]
 21%|██        | 424/2001 [00:12<00:47, 33.45it/s]
 21%|██▏       | 428/2001 [00:12<00:47, 33.46it/s]
 22%|██▏       | 432/2001 [00:13<00:46, 33.40it/s]
 22%|██▏       | 436/2001 [00:13<00:46, 33.38it/s]
 22%|██▏       | 440/2001 [00:13<00:46, 33.40it/s]
 22%|██▏       | 444/2001 [00:13<00:46, 33.49it/s]
 22%|██▏       | 448/2001 [00:13<00:46, 33.49it/s]
 23%|██▎       | 452/2001 [00:13<00:46, 33.44it/s]
 23%|██▎       | 456/2001 [00:13<00:46, 33.46it/s]
 23%|██▎       | 460/2001 [00:13<00:46, 33.44it/s]
 23%|██▎       | 464/2001 [00:13<00:45, 33.51it/s]
 23%|██▎       | 468/2001 [00:14<00:45, 33.57it/s]
 24%|██▎       | 472/2001 [00:14<00:45, 33.53it/s]
 24%|██▍       | 476/2001 [00:14<00:45, 33.19it/s]
 24%|██▍       | 480/2001 [00:14<00:45, 33.22it/s]
 24%|██▍       | 484/2001 [00:14<00:45, 33.24it/s]
 24%|██▍       | 488/2001 [00:14<00:45, 33.26it/s]
 25%|██▍       | 492/2001 [00:14<00:45, 33.26it/s]
 25%|██▍       | 496/2001 [00:14<00:45, 33.37it/s]
 25%|██▍       | 500/2001 [00:15<00:44, 33.44it/s]
 25%|██▌       | 504/2001 [00:15<00:44, 33.41it/s]
 25%|██▌       | 508/2001 [00:15<00:44, 33.47it/s]
 26%|██▌       | 512/2001 [00:15<00:44, 33.55it/s]
 26%|██▌       | 516/2001 [00:15<00:44, 33.59it/s]
 26%|██▌       | 520/2001 [00:15<00:44, 33.53it/s]
 26%|██▌       | 524/2001 [00:15<00:44, 33.50it/s]
 26%|██▋       | 528/2001 [00:15<00:43, 33.52it/s]
 27%|██▋       | 532/2001 [00:15<00:43, 33.57it/s]
 27%|██▋       | 536/2001 [00:16<00:43, 33.54it/s]
 27%|██▋       | 540/2001 [00:16<00:43, 33.54it/s]
 27%|██▋       | 544/2001 [00:16<00:43, 33.27it/s]
 27%|██▋       | 548/2001 [00:16<00:44, 32.55it/s]
 28%|██▊       | 552/2001 [00:16<00:44, 32.90it/s]
 28%|██▊       | 556/2001 [00:16<00:43, 33.12it/s]
 28%|██▊       | 560/2001 [00:16<00:43, 33.37it/s]
 28%|██▊       | 564/2001 [00:16<00:42, 33.56it/s]
 28%|██▊       | 568/2001 [00:17<00:42, 33.78it/s]
 29%|██▊       | 572/2001 [00:17<00:42, 33.90it/s]
 29%|██▉       | 576/2001 [00:17<00:42, 33.81it/s]
 29%|██▉       | 580/2001 [00:17<00:41, 33.84it/s]
 29%|██▉       | 584/2001 [00:17<00:42, 33.64it/s]
 29%|██▉       | 588/2001 [00:17<00:42, 33.64it/s]
 30%|██▉       | 592/2001 [00:17<00:41, 33.69it/s]
 30%|██▉       | 596/2001 [00:17<00:41, 33.78it/s]
 30%|██▉       | 600/2001 [00:18<00:41, 33.69it/s]
 30%|███       | 604/2001 [00:18<00:41, 33.72it/s]
 30%|███       | 608/2001 [00:18<00:41, 33.58it/s]
 31%|███       | 612/2001 [00:18<00:41, 33.58it/s]
 31%|███       | 616/2001 [00:18<00:41, 33.47it/s]
 31%|███       | 620/2001 [00:18<00:41, 33.49it/s]
 31%|███       | 624/2001 [00:18<00:41, 33.58it/s]
 31%|███▏      | 628/2001 [00:18<00:40, 33.61it/s]
 32%|███▏      | 632/2001 [00:18<00:40, 33.57it/s]
 32%|███▏      | 636/2001 [00:19<00:40, 33.62it/s]
 32%|███▏      | 640/2001 [00:19<00:40, 33.68it/s]
 32%|███▏      | 644/2001 [00:19<00:40, 33.69it/s]
 32%|███▏      | 648/2001 [00:19<00:40, 33.82it/s]
 33%|███▎      | 652/2001 [00:19<00:39, 33.83it/s]
 33%|███▎      | 656/2001 [00:19<00:39, 33.84it/s]
 33%|███▎      | 660/2001 [00:19<00:39, 33.85it/s]
 33%|███▎      | 664/2001 [00:19<00:39, 33.85it/s]
 33%|███▎      | 668/2001 [00:20<00:39, 33.77it/s]
 34%|███▎      | 672/2001 [00:20<00:39, 33.80it/s]
 34%|███▍      | 676/2001 [00:20<00:39, 33.83it/s]
 34%|███▍      | 680/2001 [00:20<00:39, 33.80it/s]
 34%|███▍      | 684/2001 [00:20<00:39, 33.59it/s]
 34%|███▍      | 688/2001 [00:20<00:38, 33.74it/s]
 35%|███▍      | 692/2001 [00:20<00:38, 33.80it/s]
 35%|███▍      | 696/2001 [00:20<00:38, 33.71it/s]
 35%|███▍      | 700/2001 [00:20<00:38, 33.64it/s]
 35%|███▌      | 704/2001 [00:21<00:38, 33.75it/s]
 35%|███▌      | 708/2001 [00:21<00:38, 33.73it/s]
 36%|███▌      | 712/2001 [00:21<00:38, 33.81it/s]
 36%|███▌      | 716/2001 [00:21<00:38, 33.76it/s]
 36%|███▌      | 720/2001 [00:21<00:37, 33.71it/s]
 36%|███▌      | 724/2001 [00:21<00:37, 33.65it/s]
 36%|███▋      | 728/2001 [00:21<00:37, 33.81it/s]
 37%|███▋      | 732/2001 [00:21<00:37, 33.80it/s]
 37%|███▋      | 736/2001 [00:22<00:37, 33.85it/s]
 37%|███▋      | 740/2001 [00:22<00:37, 33.86it/s]
 37%|███▋      | 744/2001 [00:22<00:37, 33.83it/s]
 37%|███▋      | 748/2001 [00:22<00:37, 33.80it/s]
 38%|███▊      | 752/2001 [00:22<00:36, 33.76it/s]
 38%|███▊      | 756/2001 [00:22<00:36, 33.77it/s]
 38%|███▊      | 760/2001 [00:22<00:36, 33.71it/s]
 38%|███▊      | 764/2001 [00:22<00:36, 33.75it/s]
 38%|███▊      | 768/2001 [00:23<00:36, 33.76it/s]
 39%|███▊      | 772/2001 [00:23<00:36, 33.79it/s]
 39%|███▉      | 776/2001 [00:23<00:36, 33.69it/s]
 39%|███▉      | 780/2001 [00:23<00:36, 33.74it/s]
 39%|███▉      | 784/2001 [00:23<00:36, 33.77it/s]
 39%|███▉      | 788/2001 [00:23<00:37, 32.50it/s]
 40%|███▉      | 792/2001 [00:23<00:36, 32.76it/s]
 40%|███▉      | 796/2001 [00:23<00:36, 33.08it/s]
 40%|███▉      | 800/2001 [00:23<00:36, 33.26it/s]
 40%|████      | 804/2001 [00:24<00:35, 33.33it/s]
 40%|████      | 808/2001 [00:24<00:35, 33.50it/s]
 41%|████      | 812/2001 [00:24<00:35, 33.60it/s]
 41%|████      | 816/2001 [00:24<00:35, 33.79it/s]
 41%|████      | 820/2001 [00:24<00:34, 33.79it/s]
 41%|████      | 824/2001 [00:24<00:34, 33.88it/s]
 41%|████▏     | 828/2001 [00:24<00:34, 33.83it/s]
 42%|████▏     | 832/2001 [00:24<00:34, 33.78it/s]
 42%|████▏     | 836/2001 [00:25<00:34, 33.86it/s]
 42%|████▏     | 840/2001 [00:25<00:34, 33.94it/s]
 42%|████▏     | 844/2001 [00:25<00:34, 33.93it/s]
 42%|████▏     | 848/2001 [00:25<00:34, 33.89it/s]
 43%|████▎     | 852/2001 [00:25<00:33, 33.82it/s]
 43%|████▎     | 856/2001 [00:25<00:33, 33.94it/s]
 43%|████▎     | 860/2001 [00:25<00:33, 33.96it/s]
 43%|████▎     | 864/2001 [00:25<00:33, 33.92it/s]
 43%|████▎     | 868/2001 [00:25<00:33, 33.80it/s]
 44%|████▎     | 872/2001 [00:26<00:33, 33.81it/s]
 44%|████▍     | 876/2001 [00:26<00:33, 33.77it/s]
 44%|████▍     | 880/2001 [00:26<00:33, 33.81it/s]
 44%|████▍     | 884/2001 [00:26<00:32, 33.89it/s]
 44%|████▍     | 888/2001 [00:26<00:32, 33.89it/s]
 45%|████▍     | 892/2001 [00:26<00:32, 33.89it/s]
 45%|████▍     | 896/2001 [00:26<00:32, 33.91it/s]
 45%|████▍     | 900/2001 [00:26<00:32, 33.97it/s]
 45%|████▌     | 904/2001 [00:27<00:32, 33.89it/s]
 45%|████▌     | 908/2001 [00:27<00:32, 33.87it/s]
 46%|████▌     | 912/2001 [00:27<00:32, 33.90it/s]
 46%|████▌     | 916/2001 [00:27<00:31, 33.93it/s]
 46%|████▌     | 920/2001 [00:27<00:31, 33.92it/s]
 46%|████▌     | 924/2001 [00:27<00:31, 33.87it/s]
 46%|████▋     | 928/2001 [00:27<00:31, 33.82it/s]
 47%|████▋     | 932/2001 [00:27<00:31, 33.71it/s]
 47%|████▋     | 936/2001 [00:27<00:31, 33.67it/s]
 47%|████▋     | 940/2001 [00:28<00:31, 33.72it/s]
 47%|████▋     | 944/2001 [00:28<00:31, 33.79it/s]
 47%|████▋     | 948/2001 [00:28<00:31, 33.86it/s]
 48%|████▊     | 952/2001 [00:28<00:31, 33.81it/s]
 48%|████▊     | 956/2001 [00:28<00:30, 33.76it/s]
 48%|████▊     | 960/2001 [00:28<00:30, 33.78it/s]
 48%|████▊     | 964/2001 [00:28<00:30, 33.81it/s]
 48%|████▊     | 968/2001 [00:28<00:30, 33.87it/s]
 49%|████▊     | 972/2001 [00:29<00:30, 33.86it/s]
 49%|████▉     | 976/2001 [00:29<00:30, 33.65it/s]
 49%|████▉     | 980/2001 [00:29<00:30, 33.66it/s]
 49%|████▉     | 984/2001 [00:29<00:30, 33.67it/s]
 49%|████▉     | 988/2001 [00:29<00:30, 33.63it/s]
 50%|████▉     | 992/2001 [00:29<00:29, 33.68it/s]
 50%|████▉     | 996/2001 [00:29<00:29, 33.71it/s]
 50%|████▉     | 1000/2001 [00:29<00:29, 33.78it/s]
 50%|█████     | 1004/2001 [00:29<00:29, 33.68it/s]
 50%|█████     | 1008/2001 [00:30<00:29, 33.61it/s]
 51%|█████     | 1012/2001 [00:30<00:29, 33.63it/s]
 51%|█████     | 1016/2001 [00:30<00:29, 33.64it/s]
 51%|█████     | 1020/2001 [00:30<00:29, 33.65it/s]
 51%|█████     | 1024/2001 [00:30<00:29, 33.61it/s]
 51%|█████▏    | 1028/2001 [00:30<00:29, 33.55it/s]
 52%|█████▏    | 1032/2001 [00:30<00:28, 33.55it/s]
 52%|█████▏    | 1036/2001 [00:30<00:28, 33.51it/s]
 52%|█████▏    | 1040/2001 [00:31<00:28, 33.57it/s]
 52%|█████▏    | 1044/2001 [00:31<00:28, 33.65it/s]
 52%|█████▏    | 1048/2001 [00:31<00:28, 33.57it/s]
 53%|█████▎    | 1052/2001 [00:31<00:28, 33.41it/s]
 53%|█████▎    | 1056/2001 [00:31<00:28, 33.43it/s]
 53%|█████▎    | 1060/2001 [00:31<00:28, 33.54it/s]
 53%|█████▎    | 1064/2001 [00:31<00:27, 33.52it/s]
 53%|█████▎    | 1068/2001 [00:31<00:27, 33.73it/s]
 54%|█████▎    | 1072/2001 [00:32<00:27, 33.81it/s]
 54%|█████▍    | 1076/2001 [00:32<00:27, 33.74it/s]
 54%|█████▍    | 1080/2001 [00:32<00:27, 33.60it/s]
 54%|█████▍    | 1084/2001 [00:32<00:27, 33.47it/s]
 54%|█████▍    | 1088/2001 [00:32<00:27, 33.30it/s]
 55%|█████▍    | 1092/2001 [00:32<00:27, 33.22it/s]
 55%|█████▍    | 1096/2001 [00:32<00:27, 33.15it/s]
 55%|█████▍    | 1100/2001 [00:32<00:27, 33.14it/s]
 55%|█████▌    | 1104/2001 [00:32<00:26, 33.24it/s]
 55%|█████▌    | 1108/2001 [00:33<00:26, 33.26it/s]
 56%|█████▌    | 1112/2001 [00:33<00:26, 33.04it/s]
 56%|█████▌    | 1116/2001 [00:33<00:26, 33.24it/s]
 56%|█████▌    | 1120/2001 [00:33<00:26, 33.35it/s]
 56%|█████▌    | 1124/2001 [00:33<00:26, 33.55it/s]
 56%|█████▋    | 1128/2001 [00:33<00:26, 33.44it/s]
 57%|█████▋    | 1132/2001 [00:33<00:26, 33.37it/s]
 57%|█████▋    | 1136/2001 [00:33<00:25, 33.45it/s]
 57%|█████▋    | 1140/2001 [00:34<00:25, 33.42it/s]
 57%|█████▋    | 1144/2001 [00:34<00:25, 33.43it/s]
 57%|█████▋    | 1148/2001 [00:34<00:25, 33.30it/s]
 58%|█████▊    | 1152/2001 [00:34<00:25, 33.41it/s]
 58%|█████▊    | 1156/2001 [00:34<00:25, 33.50it/s]
 58%|█████▊    | 1160/2001 [00:34<00:25, 33.64it/s]
 58%|█████▊    | 1164/2001 [00:34<00:24, 33.65it/s]
 58%|█████▊    | 1168/2001 [00:34<00:24, 33.57it/s]
 59%|█████▊    | 1172/2001 [00:35<00:24, 33.60it/s]
 59%|█████▉    | 1176/2001 [00:35<00:24, 33.69it/s]
 59%|█████▉    | 1180/2001 [00:35<00:24, 33.69it/s]
 59%|█████▉    | 1184/2001 [00:35<00:24, 33.70it/s]
 59%|█████▉    | 1188/2001 [00:35<00:24, 33.68it/s]
 60%|█████▉    | 1192/2001 [00:35<00:24, 33.66it/s]
 60%|█████▉    | 1196/2001 [00:35<00:23, 33.69it/s]
 60%|█████▉    | 1200/2001 [00:35<00:23, 33.70it/s]
 60%|██████    | 1204/2001 [00:35<00:23, 33.58it/s]
 60%|██████    | 1208/2001 [00:36<00:23, 33.66it/s]
 61%|██████    | 1212/2001 [00:36<00:23, 33.70it/s]
 61%|██████    | 1216/2001 [00:36<00:23, 33.79it/s]
 61%|██████    | 1220/2001 [00:36<00:23, 33.83it/s]
 61%|██████    | 1224/2001 [00:36<00:22, 33.89it/s]
 61%|██████▏   | 1228/2001 [00:36<00:22, 33.76it/s]
 62%|██████▏   | 1232/2001 [00:36<00:22, 33.76it/s]
 62%|██████▏   | 1236/2001 [00:36<00:22, 33.80it/s]
 62%|██████▏   | 1240/2001 [00:37<00:22, 33.92it/s]
 62%|██████▏   | 1244/2001 [00:37<00:22, 33.94it/s]
 62%|██████▏   | 1248/2001 [00:37<00:22, 33.82it/s]
 63%|██████▎   | 1252/2001 [00:37<00:22, 33.78it/s]
 63%|██████▎   | 1256/2001 [00:37<00:22, 33.79it/s]
 63%|██████▎   | 1260/2001 [00:37<00:21, 33.83it/s]
 63%|██████▎   | 1264/2001 [00:37<00:21, 33.68it/s]
 63%|██████▎   | 1268/2001 [00:37<00:21, 33.72it/s]
 64%|██████▎   | 1272/2001 [00:37<00:21, 33.81it/s]
 64%|██████▍   | 1276/2001 [00:38<00:21, 33.81it/s]
 64%|██████▍   | 1280/2001 [00:38<00:21, 33.80it/s]
 64%|██████▍   | 1284/2001 [00:38<00:21, 33.84it/s]
 64%|██████▍   | 1288/2001 [00:38<00:21, 33.42it/s]
 65%|██████▍   | 1292/2001 [00:38<00:21, 33.08it/s]
 65%|██████▍   | 1296/2001 [00:38<00:21, 32.52it/s]
 65%|██████▍   | 1300/2001 [00:38<00:21, 32.95it/s]
 65%|██████▌   | 1304/2001 [00:38<00:21, 33.14it/s]
 65%|██████▌   | 1308/2001 [00:39<00:20, 33.31it/s]
 66%|██████▌   | 1312/2001 [00:39<00:20, 33.54it/s]
 66%|██████▌   | 1316/2001 [00:39<00:20, 33.59it/s]
 66%|██████▌   | 1320/2001 [00:39<00:20, 33.62it/s]
 66%|██████▌   | 1324/2001 [00:39<00:20, 33.62it/s]
 66%|██████▋   | 1328/2001 [00:39<00:20, 33.62it/s]
 67%|██████▋   | 1332/2001 [00:39<00:19, 33.60it/s]
 67%|██████▋   | 1336/2001 [00:39<00:19, 33.57it/s]
 67%|██████▋   | 1340/2001 [00:40<00:19, 33.62it/s]
 67%|██████▋   | 1344/2001 [00:40<00:19, 33.75it/s]
 67%|██████▋   | 1348/2001 [00:40<00:19, 33.72it/s]
 68%|██████▊   | 1352/2001 [00:40<00:19, 33.71it/s]
 68%|██████▊   | 1356/2001 [00:40<00:19, 33.69it/s]
 68%|██████▊   | 1360/2001 [00:40<00:19, 33.69it/s]
 68%|██████▊   | 1364/2001 [00:40<00:18, 33.65it/s]
 68%|██████▊   | 1368/2001 [00:40<00:18, 33.75it/s]
 69%|██████▊   | 1372/2001 [00:40<00:18, 33.79it/s]
 69%|██████▉   | 1376/2001 [00:41<00:18, 33.69it/s]
 69%|██████▉   | 1380/2001 [00:41<00:18, 33.58it/s]
 69%|██████▉   | 1384/2001 [00:41<00:18, 33.50it/s]
 69%|██████▉   | 1388/2001 [00:41<00:18, 33.45it/s]
 70%|██████▉   | 1392/2001 [00:41<00:18, 33.48it/s]
 70%|██████▉   | 1396/2001 [00:41<00:18, 33.35it/s]
 70%|██████▉   | 1400/2001 [00:41<00:18, 33.28it/s]
 70%|███████   | 1404/2001 [00:41<00:17, 33.32it/s]
 70%|███████   | 1408/2001 [00:42<00:17, 33.27it/s]
 71%|███████   | 1412/2001 [00:42<00:17, 33.48it/s]
 71%|███████   | 1416/2001 [00:42<00:17, 33.54it/s]
 71%|███████   | 1420/2001 [00:42<00:17, 33.54it/s]
 71%|███████   | 1424/2001 [00:42<00:17, 33.44it/s]
 71%|███████▏  | 1428/2001 [00:42<00:17, 33.34it/s]
 72%|███████▏  | 1432/2001 [00:42<00:17, 33.44it/s]
 72%|███████▏  | 1436/2001 [00:42<00:16, 33.39it/s]
 72%|███████▏  | 1440/2001 [00:42<00:16, 33.38it/s]
 72%|███████▏  | 1444/2001 [00:43<00:16, 33.49it/s]
 72%|███████▏  | 1448/2001 [00:43<00:16, 33.43it/s]
 73%|███████▎  | 1452/2001 [00:43<00:16, 33.44it/s]
 73%|███████▎  | 1456/2001 [00:43<00:16, 33.45it/s]
 73%|███████▎  | 1460/2001 [00:43<00:16, 33.64it/s]
 73%|███████▎  | 1464/2001 [00:43<00:15, 33.71it/s]
 73%|███████▎  | 1468/2001 [00:43<00:15, 33.74it/s]
 74%|███████▎  | 1472/2001 [00:43<00:15, 33.79it/s]
 74%|███████▍  | 1476/2001 [00:44<00:15, 33.72it/s]
 74%|███████▍  | 1480/2001 [00:44<00:15, 33.52it/s]
 74%|███████▍  | 1484/2001 [00:44<00:15, 32.83it/s]
 74%|███████▍  | 1488/2001 [00:44<00:15, 33.15it/s]
 75%|███████▍  | 1492/2001 [00:44<00:15, 33.23it/s]
 75%|███████▍  | 1496/2001 [00:44<00:15, 33.38it/s]
 75%|███████▍  | 1500/2001 [00:44<00:14, 33.52it/s]
 75%|███████▌  | 1504/2001 [00:44<00:14, 33.56it/s]
 75%|███████▌  | 1508/2001 [00:45<00:14, 33.75it/s]
 76%|███████▌  | 1512/2001 [00:45<00:14, 33.88it/s]
 76%|███████▌  | 1516/2001 [00:45<00:14, 33.91it/s]
 76%|███████▌  | 1520/2001 [00:45<00:14, 33.97it/s]
 76%|███████▌  | 1524/2001 [00:45<00:14, 34.04it/s]
 76%|███████▋  | 1528/2001 [00:45<00:13, 34.02it/s]
 77%|███████▋  | 1532/2001 [00:45<00:13, 34.08it/s]
 77%|███████▋  | 1536/2001 [00:45<00:13, 34.07it/s]
 77%|███████▋  | 1540/2001 [00:45<00:13, 34.02it/s]
 77%|███████▋  | 1544/2001 [00:46<00:13, 33.99it/s]
 77%|███████▋  | 1548/2001 [00:46<00:13, 34.01it/s]
 78%|███████▊  | 1552/2001 [00:46<00:13, 34.02it/s]
 78%|███████▊  | 1556/2001 [00:46<00:13, 34.07it/s]
 78%|███████▊  | 1560/2001 [00:46<00:12, 34.03it/s]
 78%|███████▊  | 1564/2001 [00:46<00:12, 34.14it/s]
 78%|███████▊  | 1568/2001 [00:46<00:12, 34.13it/s]
 79%|███████▊  | 1572/2001 [00:46<00:12, 34.00it/s]
 79%|███████▉  | 1576/2001 [00:47<00:12, 33.79it/s]
 79%|███████▉  | 1580/2001 [00:47<00:12, 33.87it/s]
 79%|███████▉  | 1584/2001 [00:47<00:12, 33.89it/s]
 79%|███████▉  | 1588/2001 [00:47<00:12, 33.91it/s]
 80%|███████▉  | 1592/2001 [00:47<00:12, 33.85it/s]
 80%|███████▉  | 1596/2001 [00:47<00:11, 33.91it/s]
 80%|███████▉  | 1600/2001 [00:47<00:11, 33.86it/s]
 80%|████████  | 1604/2001 [00:47<00:11, 33.84it/s]
 80%|████████  | 1608/2001 [00:47<00:11, 33.89it/s]
 81%|████████  | 1612/2001 [00:48<00:11, 33.65it/s]
 81%|████████  | 1616/2001 [00:48<00:11, 33.76it/s]
 81%|████████  | 1620/2001 [00:48<00:11, 33.83it/s]
 81%|████████  | 1624/2001 [00:48<00:11, 33.79it/s]
 81%|████████▏ | 1628/2001 [00:48<00:11, 33.73it/s]
 82%|████████▏ | 1632/2001 [00:48<00:10, 33.81it/s]
 82%|████████▏ | 1636/2001 [00:48<00:10, 33.81it/s]
 82%|████████▏ | 1640/2001 [00:48<00:10, 33.81it/s]
 82%|████████▏ | 1644/2001 [00:49<00:10, 33.82it/s]
 82%|████████▏ | 1648/2001 [00:49<00:10, 33.95it/s]
 83%|████████▎ | 1652/2001 [00:49<00:10, 33.89it/s]
 83%|████████▎ | 1656/2001 [00:49<00:10, 33.85it/s]
 83%|████████▎ | 1660/2001 [00:49<00:10, 33.85it/s]
 83%|████████▎ | 1664/2001 [00:49<00:09, 33.97it/s]
 83%|████████▎ | 1668/2001 [00:49<00:09, 34.04it/s]
 84%|████████▎ | 1672/2001 [00:49<00:09, 33.92it/s]
 84%|████████▍ | 1676/2001 [00:49<00:09, 33.85it/s]
 84%|████████▍ | 1680/2001 [00:50<00:09, 33.85it/s]
 84%|████████▍ | 1684/2001 [00:50<00:09, 33.90it/s]
 84%|████████▍ | 1688/2001 [00:50<00:09, 33.91it/s]
 85%|████████▍ | 1692/2001 [00:50<00:09, 33.92it/s]
 85%|████████▍ | 1696/2001 [00:50<00:08, 34.05it/s]
 85%|████████▍ | 1700/2001 [00:50<00:08, 33.92it/s]
 85%|████████▌ | 1704/2001 [00:50<00:08, 33.83it/s]
 85%|████████▌ | 1708/2001 [00:50<00:08, 33.89it/s]
 86%|████████▌ | 1712/2001 [00:51<00:08, 33.96it/s]
 86%|████████▌ | 1716/2001 [00:51<00:08, 33.83it/s]
 86%|████████▌ | 1720/2001 [00:51<00:08, 33.92it/s]
 86%|████████▌ | 1724/2001 [00:51<00:08, 33.92it/s]
 86%|████████▋ | 1728/2001 [00:51<00:08, 33.86it/s]
 87%|████████▋ | 1732/2001 [00:51<00:07, 33.76it/s]
 87%|████████▋ | 1736/2001 [00:51<00:07, 33.78it/s]
 87%|████████▋ | 1740/2001 [00:51<00:07, 33.86it/s]
 87%|████████▋ | 1744/2001 [00:51<00:07, 33.86it/s]
 87%|████████▋ | 1748/2001 [00:52<00:07, 33.92it/s]
 88%|████████▊ | 1752/2001 [00:52<00:07, 34.01it/s]
 88%|████████▊ | 1756/2001 [00:52<00:07, 34.02it/s]
 88%|████████▊ | 1760/2001 [00:52<00:07, 33.97it/s]
 88%|████████▊ | 1764/2001 [00:52<00:07, 33.85it/s]
 88%|████████▊ | 1768/2001 [00:52<00:06, 33.84it/s]
 89%|████████▊ | 1772/2001 [00:52<00:06, 33.71it/s]
 89%|████████▉ | 1776/2001 [00:52<00:06, 33.77it/s]
 89%|████████▉ | 1780/2001 [00:53<00:06, 33.83it/s]
 89%|████████▉ | 1784/2001 [00:53<00:06, 33.79it/s]
 89%|████████▉ | 1788/2001 [00:53<00:06, 33.76it/s]
 90%|████████▉ | 1792/2001 [00:53<00:06, 33.82it/s]
 90%|████████▉ | 1796/2001 [00:53<00:06, 33.82it/s]
 90%|████████▉ | 1800/2001 [00:53<00:05, 33.73it/s]
 90%|█████████ | 1804/2001 [00:53<00:05, 33.79it/s]
 90%|█████████ | 1808/2001 [00:53<00:05, 33.87it/s]
 91%|█████████ | 1812/2001 [00:53<00:05, 33.81it/s]
 91%|█████████ | 1816/2001 [00:54<00:05, 33.80it/s]
 91%|█████████ | 1820/2001 [00:54<00:05, 33.81it/s]
 91%|█████████ | 1824/2001 [00:54<00:05, 33.94it/s]
 91%|█████████▏| 1828/2001 [00:54<00:05, 33.87it/s]
 92%|█████████▏| 1832/2001 [00:54<00:04, 33.89it/s]
 92%|█████████▏| 1836/2001 [00:54<00:04, 33.47it/s]
 92%|█████████▏| 1840/2001 [00:54<00:04, 32.99it/s]
 92%|█████████▏| 1844/2001 [00:54<00:04, 33.27it/s]
 92%|█████████▏| 1848/2001 [00:55<00:04, 33.56it/s]
 93%|█████████▎| 1852/2001 [00:55<00:04, 33.66it/s]
 93%|█████████▎| 1856/2001 [00:55<00:04, 33.74it/s]
 93%|█████████▎| 1860/2001 [00:55<00:04, 33.78it/s]
 93%|█████████▎| 1864/2001 [00:55<00:04, 33.69it/s]
 93%|█████████▎| 1868/2001 [00:55<00:03, 33.84it/s]
 94%|█████████▎| 1872/2001 [00:55<00:03, 33.93it/s]
 94%|█████████▍| 1876/2001 [00:55<00:03, 33.95it/s]
 94%|█████████▍| 1880/2001 [00:56<00:03, 34.01it/s]
 94%|█████████▍| 1884/2001 [00:56<00:03, 34.01it/s]
 94%|█████████▍| 1888/2001 [00:56<00:03, 33.91it/s]
 95%|█████████▍| 1892/2001 [00:56<00:03, 33.95it/s]
 95%|█████████▍| 1896/2001 [00:56<00:03, 33.89it/s]
 95%|█████████▍| 1900/2001 [00:56<00:02, 33.85it/s]
 95%|█████████▌| 1904/2001 [00:56<00:02, 33.87it/s]
 95%|█████████▌| 1908/2001 [00:56<00:02, 33.94it/s]
 96%|█████████▌| 1912/2001 [00:56<00:02, 33.93it/s]
 96%|█████████▌| 1916/2001 [00:57<00:02, 33.92it/s]
 96%|█████████▌| 1920/2001 [00:57<00:02, 33.93it/s]
 96%|█████████▌| 1924/2001 [00:57<00:02, 33.93it/s]
 96%|█████████▋| 1928/2001 [00:57<00:02, 33.96it/s]
 97%|█████████▋| 1932/2001 [00:57<00:02, 34.03it/s]
 97%|█████████▋| 1936/2001 [00:57<00:01, 33.96it/s]
 97%|█████████▋| 1940/2001 [00:57<00:01, 33.94it/s]
 97%|█████████▋| 1944/2001 [00:57<00:01, 33.84it/s]
 97%|█████████▋| 1948/2001 [00:58<00:01, 33.77it/s]
 98%|█████████▊| 1952/2001 [00:58<00:01, 33.75it/s]
 98%|█████████▊| 1956/2001 [00:58<00:01, 33.66it/s]
 98%|█████████▊| 1960/2001 [00:58<00:01, 33.62it/s]
 98%|█████████▊| 1964/2001 [00:58<00:01, 33.77it/s]
 98%|█████████▊| 1968/2001 [00:58<00:00, 33.83it/s]
 99%|█████████▊| 1972/2001 [00:58<00:00, 33.83it/s]
 99%|█████████▉| 1976/2001 [00:58<00:00, 33.91it/s]
 99%|█████████▉| 1980/2001 [00:58<00:00, 33.93it/s]
 99%|█████████▉| 1984/2001 [00:59<00:00, 34.02it/s]
 99%|█████████▉| 1988/2001 [00:59<00:00, 34.06it/s]
100%|█████████▉| 1992/2001 [00:59<00:00, 34.02it/s]
100%|█████████▉| 1996/2001 [00:59<00:00, 33.92it/s]
100%|█████████▉| 2000/2001 [00:59<00:00, 33.81it/s]
100%|██████████| 2001/2001 [00:59<00:00, 33.58it/s]

<maicos.modules.pdfplanar.PDFPlanar object at 0x7ff3b28c6cf0>

We also calculate the density profile of the water molecules in order to compare the different slabs with the layering visible in the density.

dana_obj = maicos.DensityPlanar(
    water, dim=2, refgroup=water, bin_width=0.1, sym=True, zmin=-7, zmax=7
)

dana_obj.run(step=10)

<maicos.modules.densityplanar.DensityPlanar object at 0x7ff3b2d85810>

The results of the analysis are stored in the results member variable. As per the documentation of PDFPlanar, we get three different arrays: bin_pos, bins, and pdf. Here, bin_pos is the position of the center of the slices in the z-direction, bins contains the bin positions of the pair distribution, which are shared by all slices and correspondingly pdf contains each profile that our code produced.

In the following, we loop over all the pdf slices and plot each of them. Furthermore, in a separate subplot, we also show the density profile of the water molecules and highlight the slices that each pdf is calculated for. Hence, the same color in both plots corresponds to the same slice for the pair distribution function and the density profile. %%

# u per cubic angstrom to kg per cubic meter factor
u2kg = 1660.5390665999998

fig, ax = plt.subplots(1, 2)
print(ax)

tax = ax[1].twinx()
shift = 0
shift_amount = 2
for i in range(0, len(ana_obj.results.pdf[0])):
    bin_pos = ana_obj.results.bin_pos[i]

    pdf_prof = ana_obj.results.pdf[:, i]
    mean_bulk = np.mean(pdf_prof[ana_obj.results.bins > 10])

    line = ax[0].plot(
        ana_obj.results.bins, ana_obj.results.pdf[:, i] / mean_bulk + shift
    )
    tax.vlines(
        7 + bin_pos, 0, 3500, alpha=0.7, color=line[0].get_color(), linestyles="dashed"
    )

    tax.axvspan(
        7 + bin_pos - 0.25 * 2,
        7 + bin_pos + 0.25 * 2,
        color=line[0].get_color(),
        alpha=0.3,
    )
    shift += shift_amount

ax[0].set_ylabel(r"$g(r)$")
ax[0].set_xlabel(r"$r$ [$\AA$]")
ax[0].set_xlim((0, 15))
ax[0].hlines(1, 0, 15, color="black", linestyles="dashed", alpha=0.5)

tax.plot(
    7 + dana_obj.results.bin_pos,
    dana_obj.results.profile * u2kg,
    color="black",
    label="Density",
)
tax.set_xlim((1, 7))

ax[1].set_yticks(tax.get_yticks())

ax[1].set_yticklabels([])

tax.set_ylabel(r"$\rho(z)$ [kg/m$^3$]")
ax[1].set_xlabel(r"$z$ [$\AA$]")

# Set the padding between the axis to zero
plt.tight_layout()

fig.subplots_adjust(wspace=0, hspace=0)
fig.dpi = 200

[<Axes: > <Axes: >]
